Grinning Dog Pickups: Japan’s Culture of Precision in Practice

Grinning Dog Pickups are built in Japan by Shinji Kishimoto, whose data-driven approach to vintage pickup building has drawn the attention of Carl Verheyen, Kirk Fletcher, Michael Thompson, Barry Levenson, Tomo Fujita and Jimmy Sakurai.

Before founding Grinning Dog, Kishimoto spent years restoring and analysing vintage pickups for Japanese players. Every unit was measured before a rewind, including DC resistance, inductance, magnetic flux and coil geometry. Over time, those readings formed a reference archive that became the foundation for his own designs.

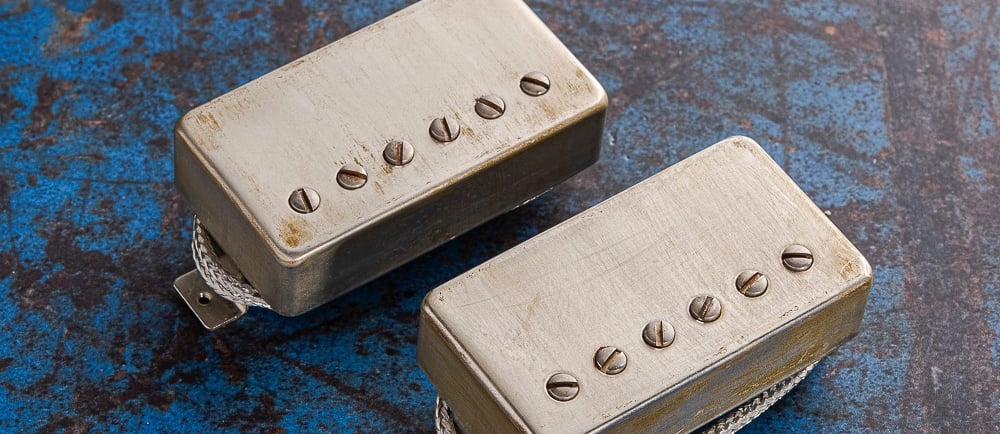

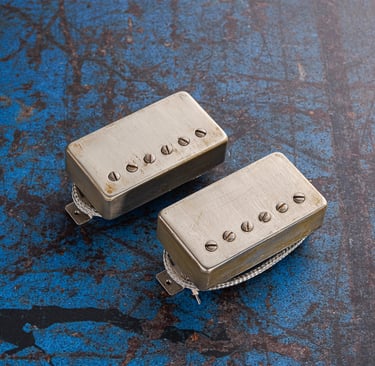

Each model begins with a verified reference. The Sweet Spots 59 Beyond and Sweet Spots 59 Beyond Bite humbuckers use sand-cast Alnico 5 magnets with a weak magnetic force matched to late 1950s examples and are wound with 42 AWG plain-enamel wire to 10 500 and 10 700 turns. The 62 S.W. Humbucker Set follows Gibson’s Square Window format with butyrate bobbins, short rough-cast magnets and 9.84 mm pole spacing, all confirmed against original examples.

The collaboration with Jimmy Sakurai shows how deeply Kishimoto works. Sakurai, known for recreating Jimmy Page’s live tone in microscopic detail, analyses pickup height, pole alignment and circuit loading. Kishimoto translates those findings into coil geometry and magnet calibration, which led to several Strat and humbucker projects based on Page’s early 1970s instruments. One of them is the In the Evening “Mr. Jimmy” Stratocaster Set, created to capture the tone heard on the 1979 recording of In the Evening.

Single coil models follow the same principle. The Early 60s Style Stratocaster Set uses heavy-formvar wire and early black-bottom geometry, while the 65 Style Grey Bobbin Set switches to plain-enamel wire and tighter winding for the tone of the CBS transition years. The 54 Caster Telecaster Set and 60 Caster Telecaster Set are wound to verified period values, with bridge coils between 6.6 and 7.0 kΩ, Alnico 5 magnets, Western Electric leads and vintage solder composition.

Kishimoto’s discipline reflects the broader Japanese culture of precision. The same mindset found in calligraphy and the samurai code. His builds follow that path: measured, documented and consistent.

Players describe Grinning Dog pickups as balanced and predictable, with dynamics that stay consistent from one set to another. The tone reflects the electrical and magnetic behaviour of the originals at their prime, built with the care that defines Japan’s best craftsmanship.
