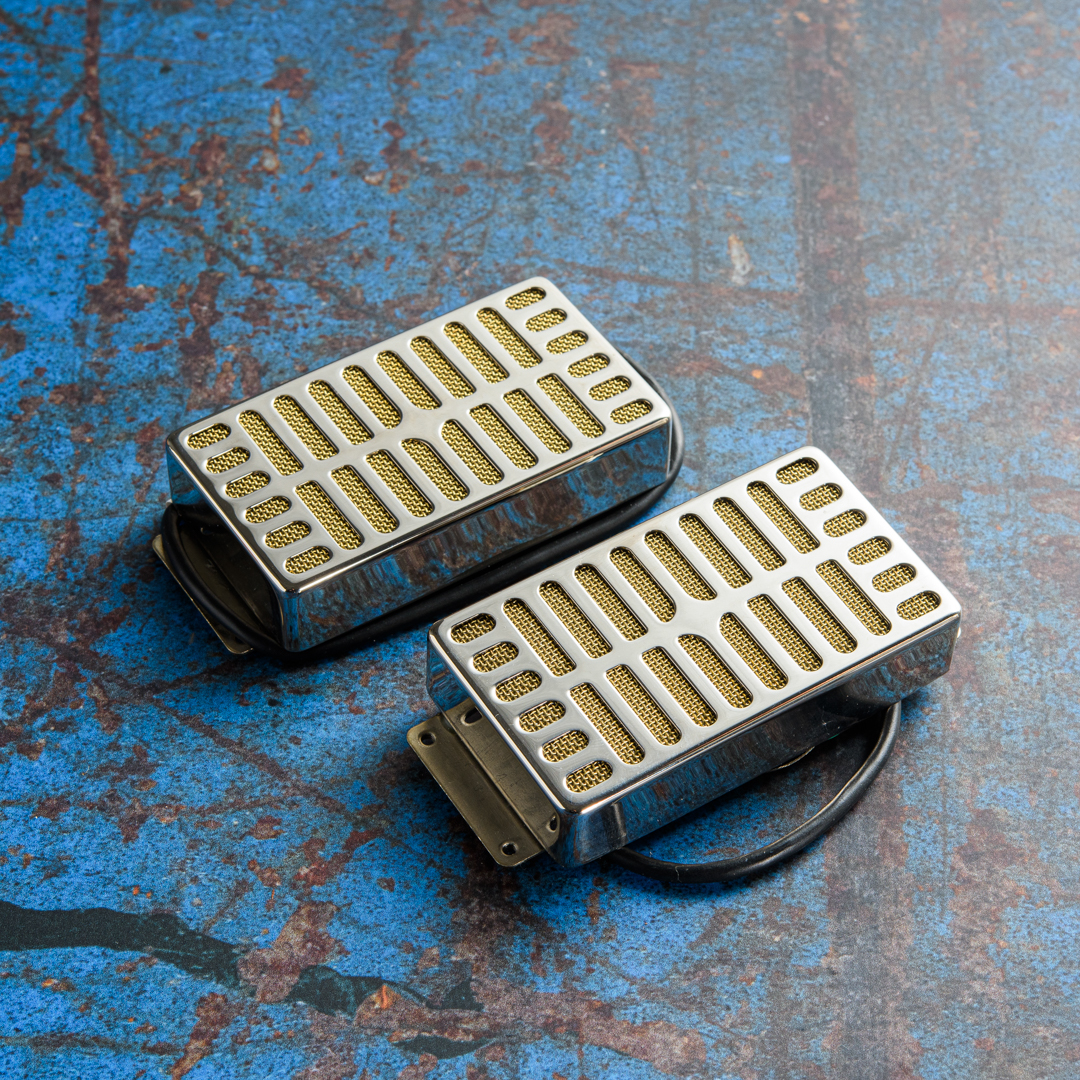

Mojo Wide Range Dual Foil Humbucker Set

The Wide Range Dual Foil Set is Mojo Pickups’ interpretation of the classic Gold Foil design in a full Wide Range humbucker format.

It is a dual coil design built using Gold Foil style internals, combining two coils constructed with 44 AWG wire and rubberised ceramic magnets. This construction follows the traditional Teisco style blueprint while adapting it to a humbucking format.

The pickups are supplied with 4 conductor wiring, allowing for standard humbucking operation or coil split functionality. In split mode, each pickup operates as a single coil based on the same Gold Foil design.

The neck pickup measures approximately 7 kΩ in humbucking mode and approximately 3.5 kΩ when split. The bridge pickup measures approximately 10 kΩ in humbucking mode and approximately 5 kΩ when split.

Specs

• Wide Range humbucker sized dual Gold Foil design
• Dual coil construction with Gold Foil style internals
• Rubberised ceramic magnet
• Hand wound with 44 AWG wire
• 4 conductor wiring for coil split operation
• Neck DC resistance approximately 7 kΩ (3.5 kΩ split)
• Bridge DC resistance approximately 10 kΩ (5 kΩ split)
• Nickel covers
• Direct drop-in Wide Range humbucker fit

Technical & Purchase Information

Wiring Harnesses
Typically paired with 250k or 500k potentiometers depending on the desired brightness and response.
