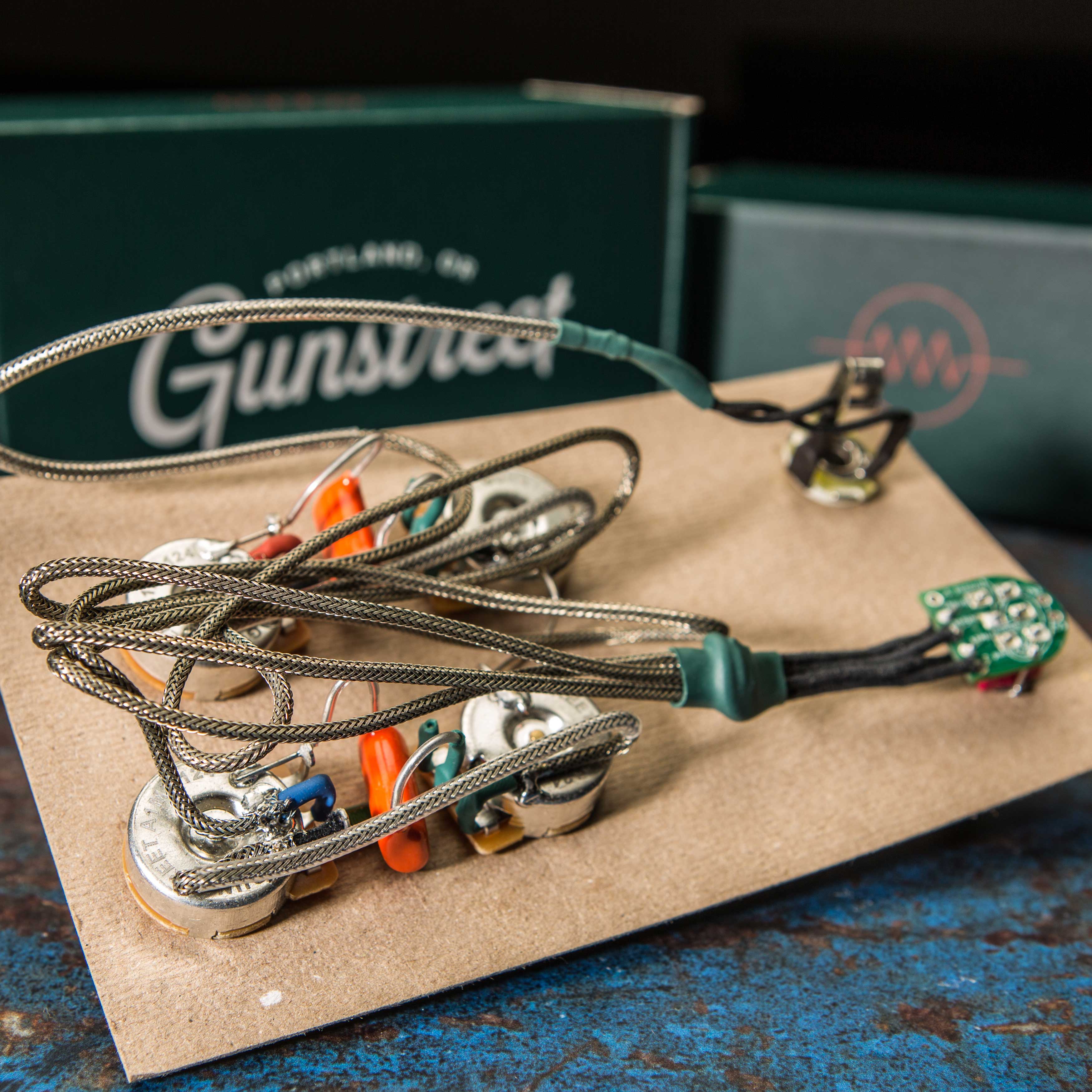

Gunstreet Telecaster Deluxe Wiring Harness

This kit is the perfect drop-in replacement for your Telecaster Deluxe or Custom style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

Parts info

• New Gunstreet Toggle Switch Specs
  New easy to install switch offers a better overall quality compared to Switchcraft. All while offering a quieter switching experience.

  • Body cavity depth 5/8" (15.87mm)

  • Mounting hole diameter 1/2" (12.70mm)

  • Thread height 7/32" (5.56mm)

  • Switch Tip Theading: 8-32

• Learn more about it and our new Gunstreet pots here

DHE "Gunstreet" Pot

• Taper style: Custom Audio

• Shaft Diameter: 3/8” (9.52MM)

• Shaft Length: 3/8th (9.52MM )

• Knob Pattern: Solid Metal Shaft 1/4th” (6.35mm)

• Nut thread: 3/8 x 32

• Values:

  • Single Coil: 250k

  • HS “Humbucker/Single Combo: 500k Volume,250k Tone

  • Humbucker: 500k

  • Widerange: 1Meg

CDE “Orange Drop” Cap

• Tolerance: -/+10%

• Values:

  • Single Coil: 0.047uf

  • HS & Humbucker: 0.022uf

  • Widerange: 0.033uf

Neutrik Rean mono jack

• Required mounting hole diameter: 3/8" (9.53mm)

• Thread: 3/8 x 32Thread height:1/4" (6.35mm

Requirements

1. Switching from a Import pot to our US Spec pot will require you to have 3/8th pot holes on your pickguard

2. When Choosing our US Spec pots, you will need a 1/4th diameter knob. The Import 6mm found on most imports, MIM, and MIJ guitar will not fit.
