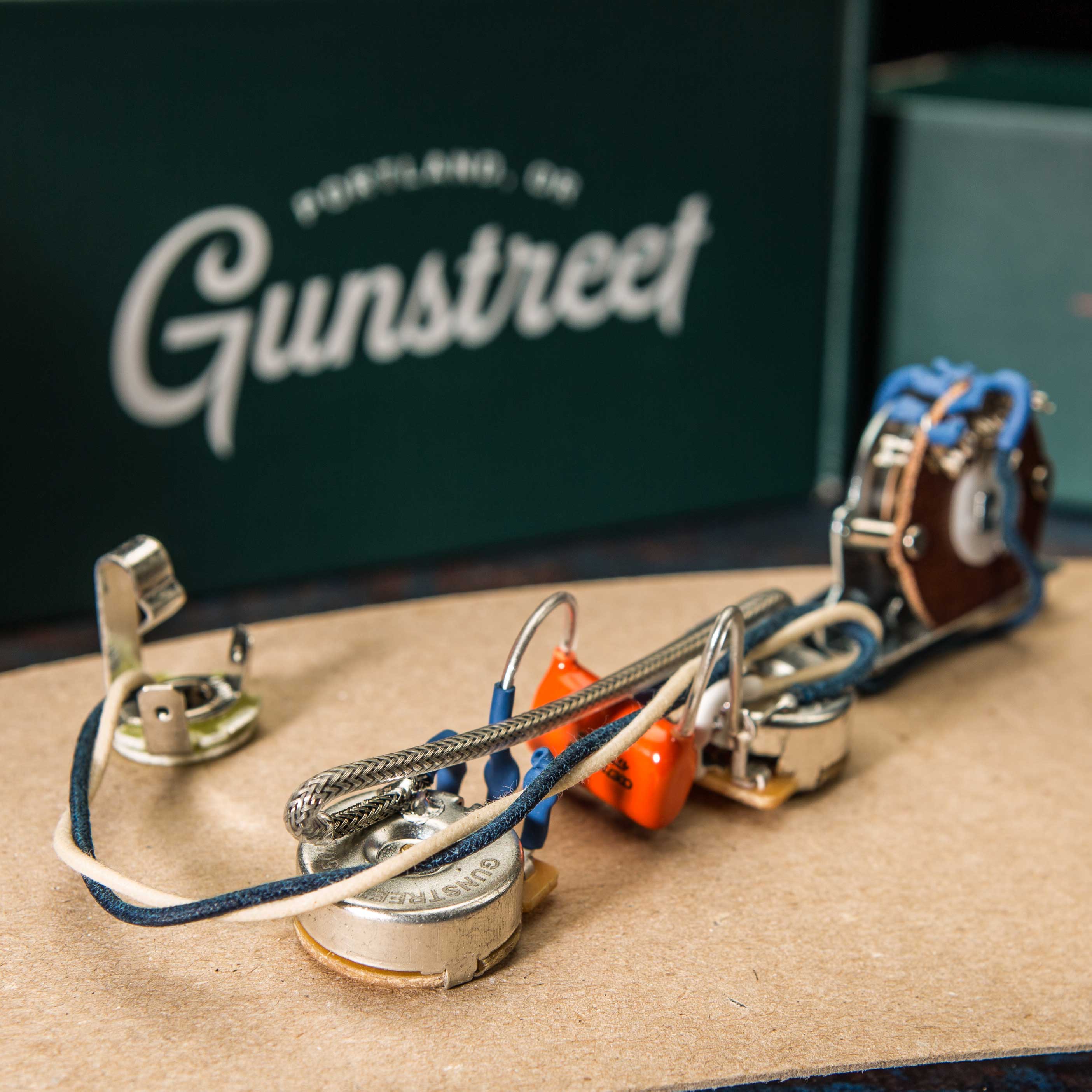

Gunstreet Telecaster Classic 4 Way Wiring Harness

This kit is the perfect drop-in replacement for your Telecaster style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

Parts info

Raw Parts

Switch

• Brand: Oak

• Cavity Depth Needed: 1-7/16” (36.51mm)

• Screw Spacing: 1-5/8” (41.28mm)

• Lever Stem: .50” x .190” (1.27mm x 4.82mm)

DHE "Gunstreet" Pots

• Taper style: Audio

• Shaft Diameter: 3/8” (9.52MM)

• Shaft Length: 3/8th (9.52MM )

• Knob Pattern: Solid Metal Shaft 1/4th (6.35mm)

• Nut thread: 3/8 x 32

• Values:

• Single Coil: 250k

• HS: 500kV-250kT

• Humbucker: 500k

CDE “Orange Drop” Cap

• Tolerance: -/+10%

• Values:

  • Single Coil: 0.047uf

  • HS: 0.022uf

  • Humbucker: 0.022uf

Neutrik Rean mono jack

• Required mounting hole diameter: 3/8" (9.53mm)

• Thread: 3/8 x 32Thread height:1/4" (6.35mm)

Requirements

• Switching from an Import pot to a US Spec pot like our pots will require you to have 3/8th pot holes on your control plate

• When Choosing our pots, you will need a 1/4th diameter knob. The Import 6mm found of most imports, MIM, and MIJ guitar will not fit.
