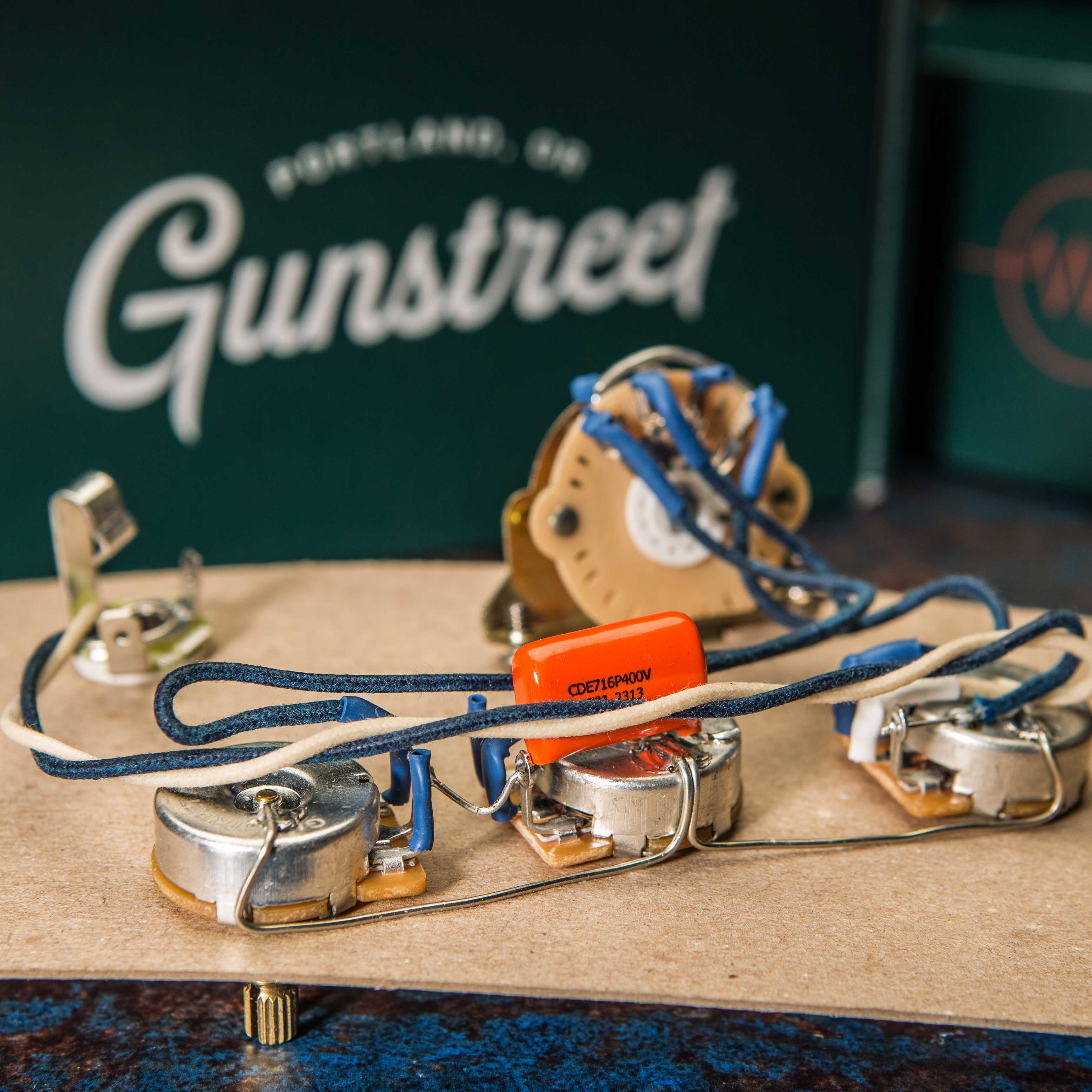

Gunstreet Stratocaster Wiring Harness

This kit is the perfect drop-in replacement for your Stratocaster style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

Parts info

Oak 5 Way Switch Specs

• Body cavity depth 1-3/8th" (34.93mm)

• Mounting Screw Spacng1 5/8" (41.28mm)

• Lever Stem (0.50x.190)

DHE "Gunstreet" Pots

• Taper style: Custom Audio

• .Shaft Diameter: 3/8” (9.52MM)

• Shaft Length: 3/8th (9.52MM )

• Knob Pattern: 18 tooth Coarse knurled

• Nut thread: 3/8 x 32

• Value: 250k -/+ 20%

Capacitor Specs

• Brand: CDE

• Model: "Orange Drop"

• Value .047uF

Rean Output Jack Specs

• Mounting hole diameter 3/8" (9.52mm)

• Thread 3/8 x 32

• Threaded portion height 1/4" (6.35mm)

Requirements

• Switching from an Import pot to our US Spec pot will require you to have 3/8th pot holes on your pickguard

• Choosing our kits will require an 18th tooth "Coarse" Knurled knob

• Some cheap Import guitar cavities are designed for Mini 12mm pots. To install a 24mm Fullsized pot may require routing out some of the cavity

• HSS strats. Most manufactures recommend 250k to keep their "Brand Sound" so our standard set up will work for your layout
