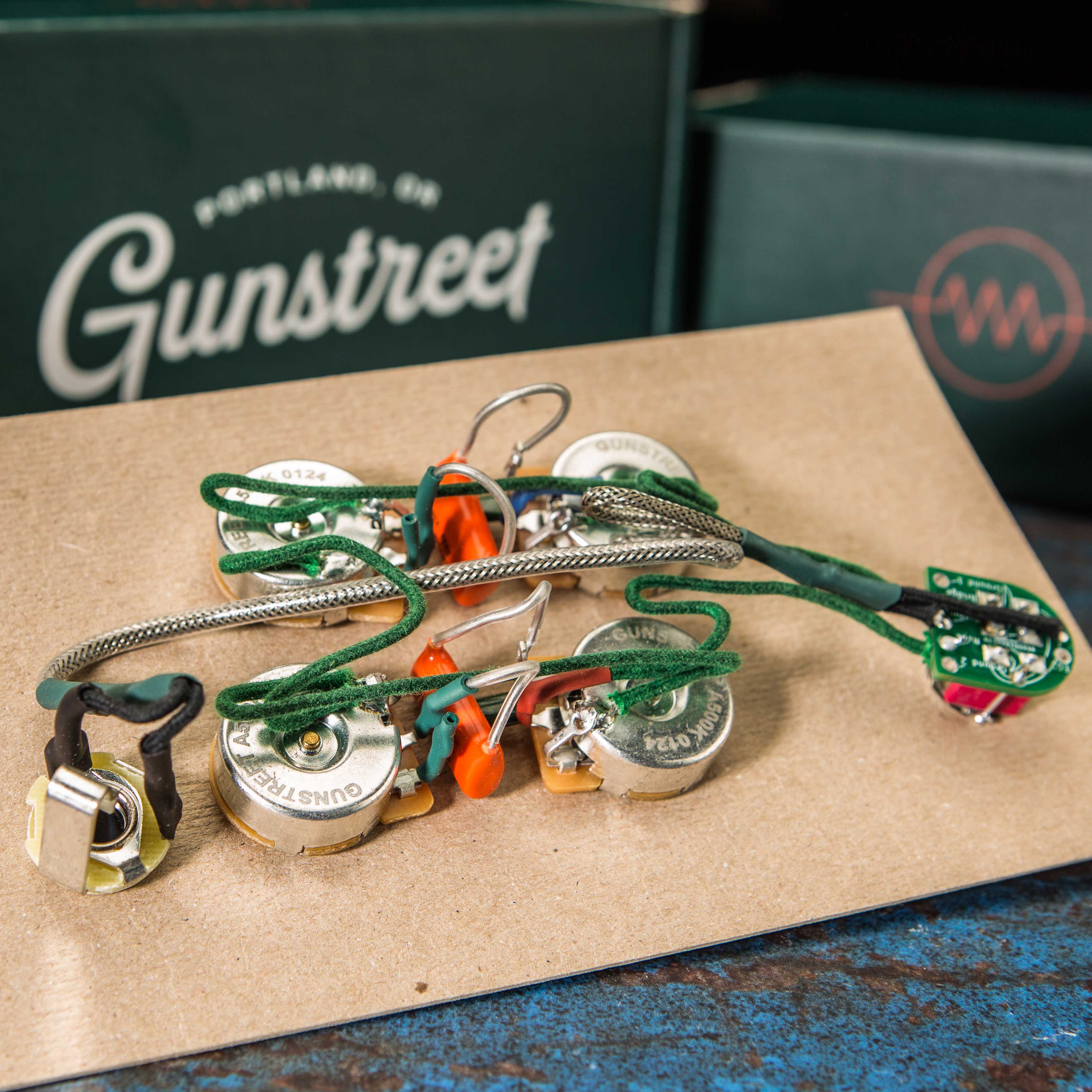

Gunstreet SG Wiring Harness

This kit is the perfect drop-in replacement for your SG style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

Parts info

Pickup Option Values

1. Humbucker Values: Pots 500k, Cap 0.022uf

2. P90: Values: Pots 500kVol 250kTone, Cap 0.022uf

Metric Pot

• Taper style: Audio

• Shaft Diameter: 6MM

• Shaft Length: 9.52MM (3/8th)

• Knob Pattern: Coarse

• Nut thread: M8 x 0.75

3/8th US Spec: DHE Gunstreet Pots

• Taper Style: Custom Audio Taper

• Knob type: 18 spline Coarse knurling

• Shaft diameter: 3/8" (9.52mm)

• Thread type: 3/8"-32

• Threaded portion: 3/8" (9.52mm)

• Required mounting hole diameter: 3/8" (9.52mm)

• Value Tolerance: -/+20%

• New Gunstreet Toggle Switch Specs
  Our new easy to install switch offers a better overall quality compared to Switchcraft. All while offering a quieter switching experience.

  • Body cavity depth 5/8" (15.87mm)

  • Mounting hole diameter 1/2" (12.70mm)

  • Thread height 7/32" (5.56mm)

  • Switch Tip Theading: 8-32

• Learn more about it and our new Gunstreet pots here

Neutrik Rean mono jack

• Required mounting hole diameter: 3/8" (9.53mm)

• Thread: 3/8 x 32Thread height:3/8" (9.53mm)

Requirements

• Converting an Import guitar to US spec

• our US Spec pots will require you to enlarge the stock pot holes to be 3/8th

• Swapping from a CTS pot will require new knobs. Our pots use an 18 tooth "Coarse" Knurled
