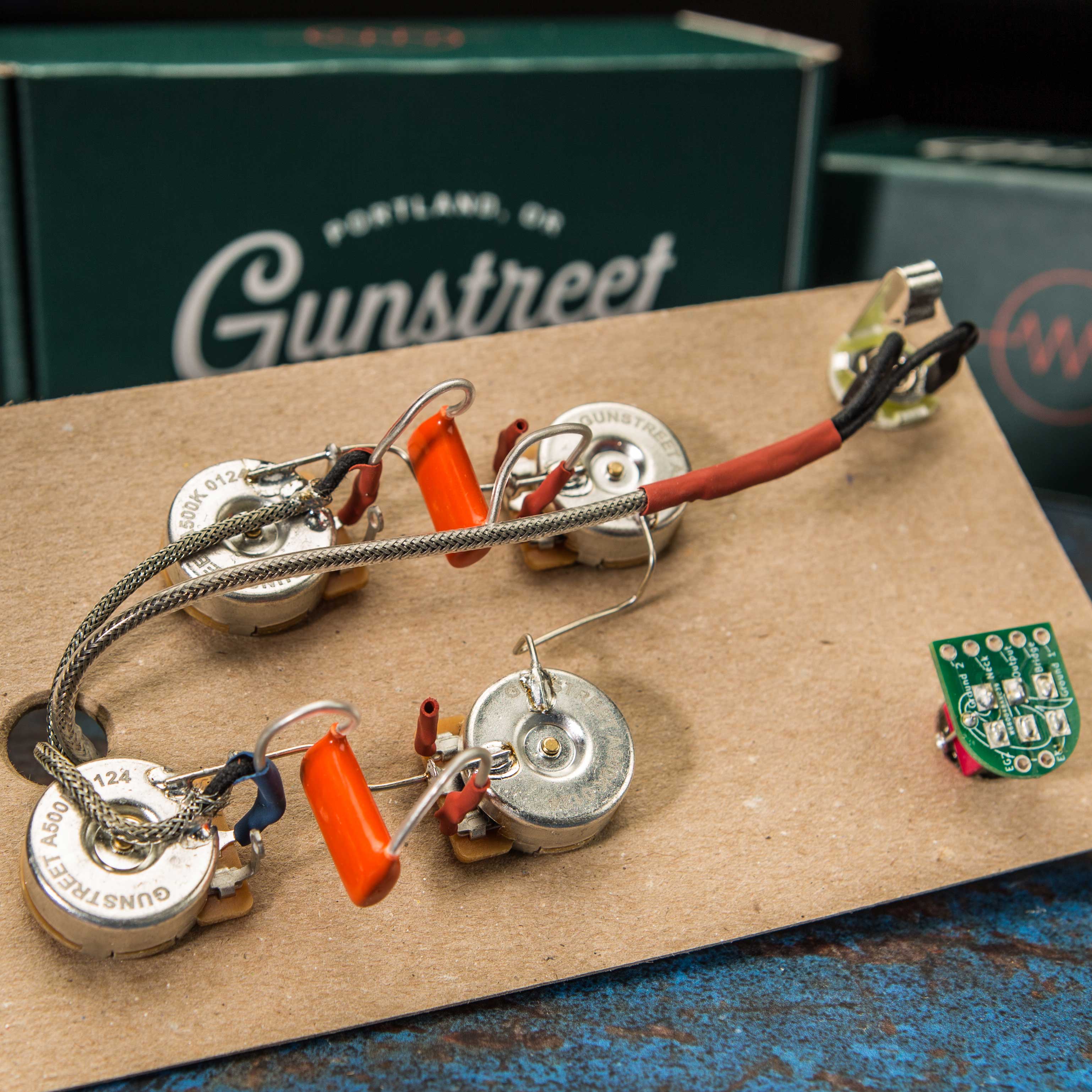

Gunstreet Les Paul Standard Classic Wiring Harness

This kit is the perfect drop-in replacement for your Les Paul style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

Parts info

1. Humbucker Values: Pots 500k, Cap 0.022uf

2. P90: Values: Pots 500kVol 250kTone, Cap 0.022ufJSE Metric

• Taper style: Audio

• Shaft Diameter: 6MM

• Shaft Length: 9.52MM (3/8th)

• Knob Pattern: Coarse

• Nut thread: M8 x 0.75

• Value: 500kVol 250kTone

New US Spec DHE “Gunstreet”  Pots

• Taper style: Custom Audio

• Shaft Diameter: 3/8” (9.52MM)

• Shaft Length:

  • Short shaft: 3/8th (9.52MM )

  • Long shaft: 3/4th (19.05MM )

• Knob Pattern: 18 spline coarse knurling

• Nut thread: 3/8 x 32

New Gunstreet Toggle Switch Specs

Our new easy to install switch offers a better overall quality compared to Switchcraft. All while offering a quieter switching experience.

• Body cavity depth 5/8" (15.87mm)

• Mounting hole diameter 1/2" (12.70mm)

• Thread height 7/32" (5.56mm)

• Switch Tip Theading: 8-32

Capacitor

• Brand: CDE "Orange Drop"

• Values: 0.022uf -/+10%

Neutrik Rean mono jack

• Required mounting hole diameter: 3/8" (9.53mm)

• Thread: 3/8 x 32Thread height:1/4" (6.35mm)

Requirements

• Converting an Import guitar to US spec

  • US spec pots will require you to enlarge the stock pot holes to be 3/8th diameter

  • When converting you will want to Choose "3/8th Short Shaft" for the correct thread length

• Most Gibson curved tops require a "3/4th Long Shaft"

• Our Pots require a 18th tooth "Coarse" Knurled knob

• Swapping from a CTS pot to our Gunstreet pot will require new knobs
