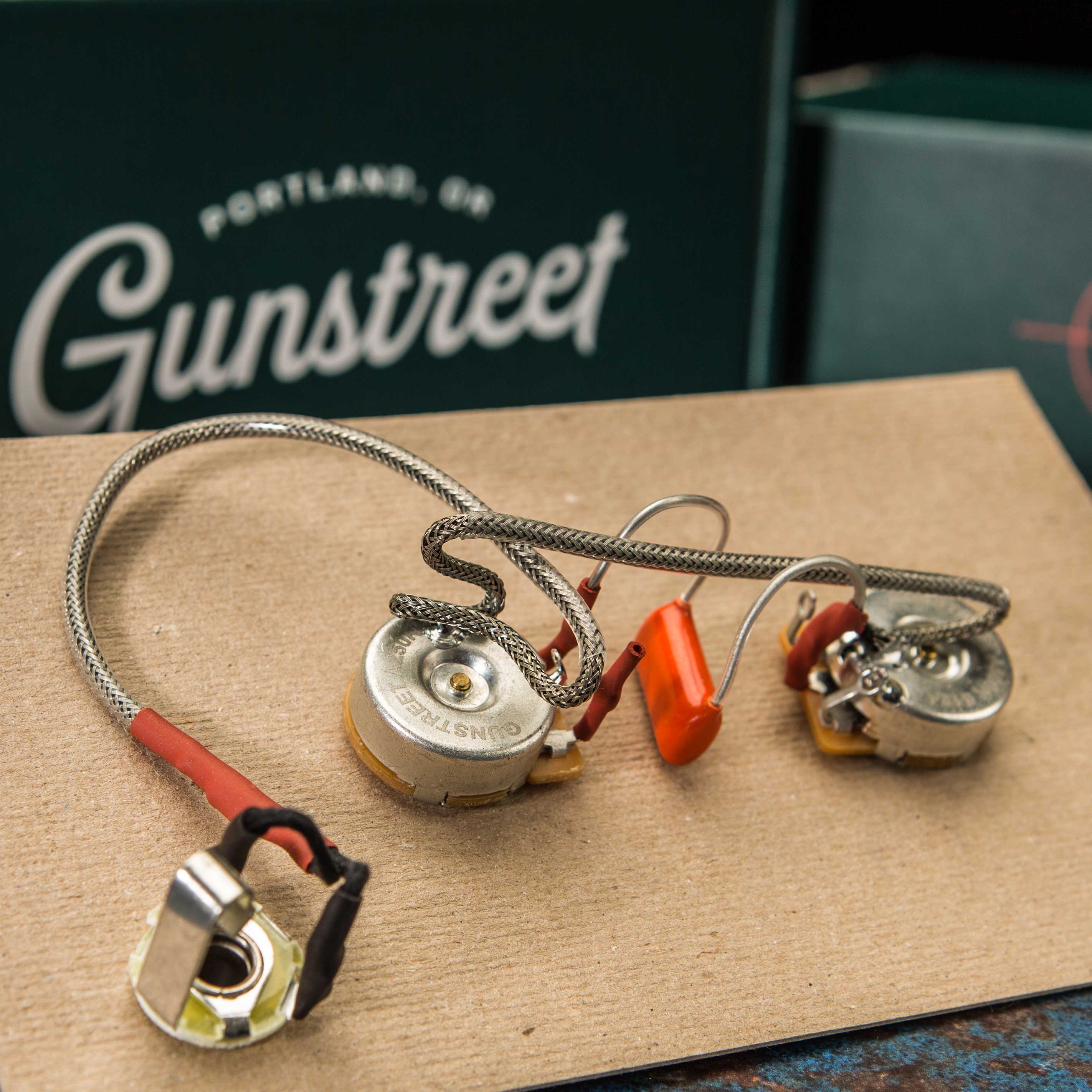

Gunstreet Les Paul Junior Wiring Harness

This kit is the perfect drop-in replacement for your Les Paul Junior style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

Parts info

Raw Parts

US SPEC: DHE Gunstreet Pots

• Taper Style: Custom Audio Taper

• Knob type: 18 spline Coarse knurling

• Shaft diameter: 3/8" (9.52mm)

• Thread type: 3/8"-32

• Threaded portion: 3/8" (9.52mm)

• Required mounting hole diameter: 3/8" (9.52mm)

Metric: DHE Gunstreet Pots

• Shaft Diameter: 6MM

• Taper style: Custom Audio taper

• Shaft Length: 9.52MM (3/8th)

• Knob Pattern:18 tooth Coarse

• Nut thread: M8 x 0.75

Neutrik Rean mono jack

• Required mounting hole diameter: 3/8" (9.53mm)

• Thread: 3/8 x 32

• Thread height: Standard: 1/4" (6.35mm)

CDE “Orange Drop” Cap

• Value tolerance rating: +/- 10%

Pickup Style Value Specs

P90: 500k Volume - 250k Tone - 0.022uf Cap

Humbucker: 500k Volume & Tone - 0.022uf Cap

Requirements

• Converting an Import guitar to US spec

  • US spec pots will require you to enlarge the stock pot holes to be 3/8th

• Choosing our kits will require an 18th tooth "Coarse" Knurled knob
