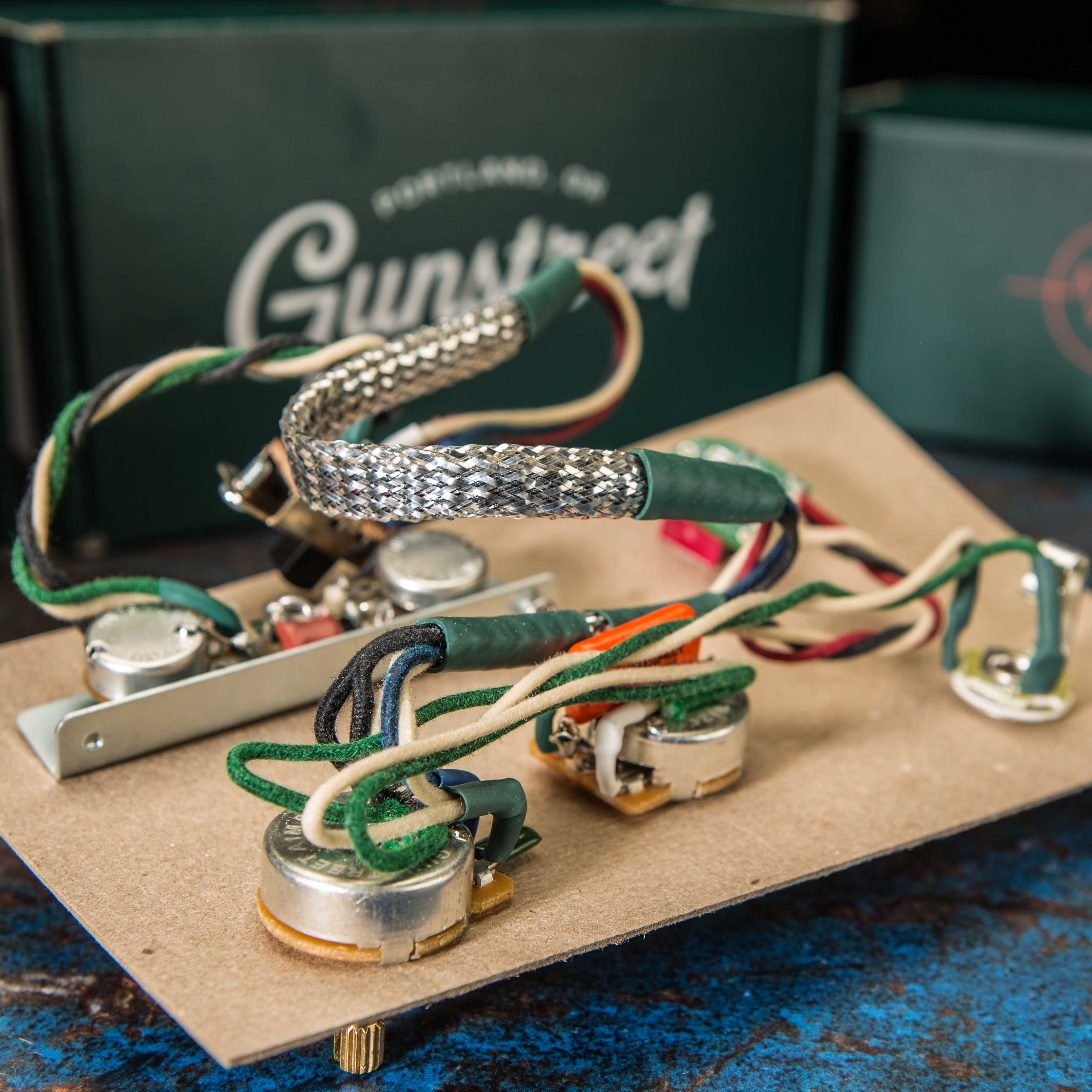

Gunstreet Jazzmaster Wiring Harness
Rhythm Circuit - Knurled - Black Switch
€219.00
Out of stock
This kit is the perfect drop-in replacement for your Jazzmaster style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!
Parts info
Switchcraft L Angle Toggle Switch Specs
Body cavity depth 1" (25.4mm)
Mounting hole diameter 1/2" (12.70mm)
Thread height 7/32" (5.56mm)
Main Wiring
DHE "Gunstreet" Pots
Taper style: Custom Audio
Resistance 1Meg
Split Shaft Knob type =
Knurled: 18 tooth “Fine” Knurled
Solid Shaft: Solid metal shaft 1/4" (6.35mm)
Thread type: 3/8"-32
Threaded portion, 3/8"
Required mounting hole diameter 3/8" (9.52mm)
Capacitor Specs
Brand: CDE
Model "Orange Drop"
Value .033uF
Neutrik Output Jack Specs
Mounting hole diameter 3/8" (9.52mm)
Thread 3/8 x 32
Threaded portion height 1/4" (6.35mm)
Rhythm Circuit
Includes new bracket and thumbwheels
Swithcraft ON/ON slider switch
Dimensions: 1/2" Wide x 1-3/8th" long (12.70mm x 34.93mm)
Required Depth: 3/4th" (19.05mm)
Screw Spacing: 1-1/8th" (28.58mm)
Required Slider Movement slot:5/16" x 9/16th" (7.94mm x 14.29mm)
Custom Alpha Pots
Volume-Resistance 1Meg
Tone-Resistance 50k
Capacitor Specs
Brand: Panasonic
Tolerance: 10%
Value .033uF
Requirements
Converting an Import or MIJ guitar to US spec
US Spec pots will require you to have a US spec Pickguard as the pot holes have to be 3/8th. Double check if your pickguard is already 3/8th before replacing. Some guitars come stock with US spec pickguards even though they have metric pots.
If swapping to our custom pots you will need new "1/4th" knobs for the solid shaft version, or 18 tooth "Coarse" knurled knobs.
