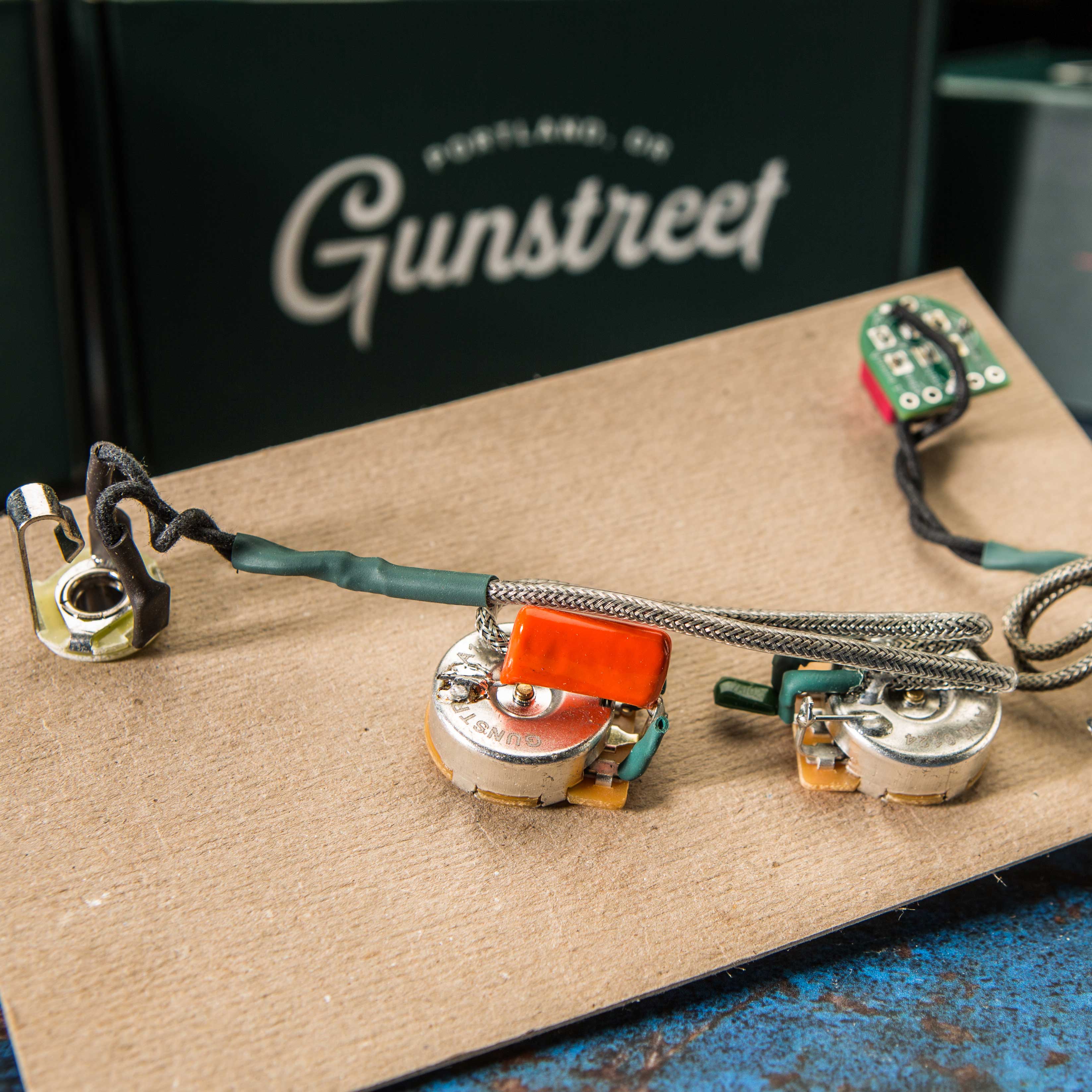

Gunstreet Jazzmaster player Wiring Harness

This kit is the perfect drop-in replacement for your Jazzmaster style guitar, whether you want to change how your instrument sounds, or just want to improve the durability we have something perfect for you!

Parts info

New Gunstreet Toggle Switch Specs

New easy to install switch offers a better overall quality compared to Switchcraft. All while offering a quieter switching experience.

• Body cavity depth 5/8" (15.87mm)

• Mounting hole diameter 1/2" (12.70mm)

• Thread height 7/32" (5.56mm)

• Switch Tip Theading: 8-32

Learn more about it and our new Gunstreet pots here

DHE Gunstreet Pots

• Taper Style:Custom Audio Taper

• Knob type:18 spline Coarse knurling

• Shaft diameter:3/8" (9.52mm)

• Thread type:3/8"-32

• Threaded portion:3/8" (9.52mm)

• Required mounting hole diameter:3/8" (9.52mm)

Pot Specs

• Value: 500k -/+20%

• Shaft Style: Split, Coarse Knurling

• Diameter: 6mm

• Thread:M8 x 0.75

Capacitor Specs

• Brand: CDE

• Model "Orange Drop"

Neutrik Output Jack Specs

• Mounting hole diameter 3/8" (9.52mm)

• Thread 3/8 x 32

• Threaded portion height 1/4" (6.35mm)

Pot and Cap values by Pickup choice

• Classic Jazzmaster: 1meg/0.033uf

• Humbucker: 500k/0.022uF

• P90: 250k/0.047uf

Requirements

• This circuit cannot be used to "Splice" into a standard Rhytm circuit style layout. These are 2 completely different circuits.

• Converting an Import guitar to US spec

  • US spec pots will require you to enlarge the stock pot holes to be 3/8th

• Choosing our kits will require an 18th tooth "Coarse" Knurled knob
