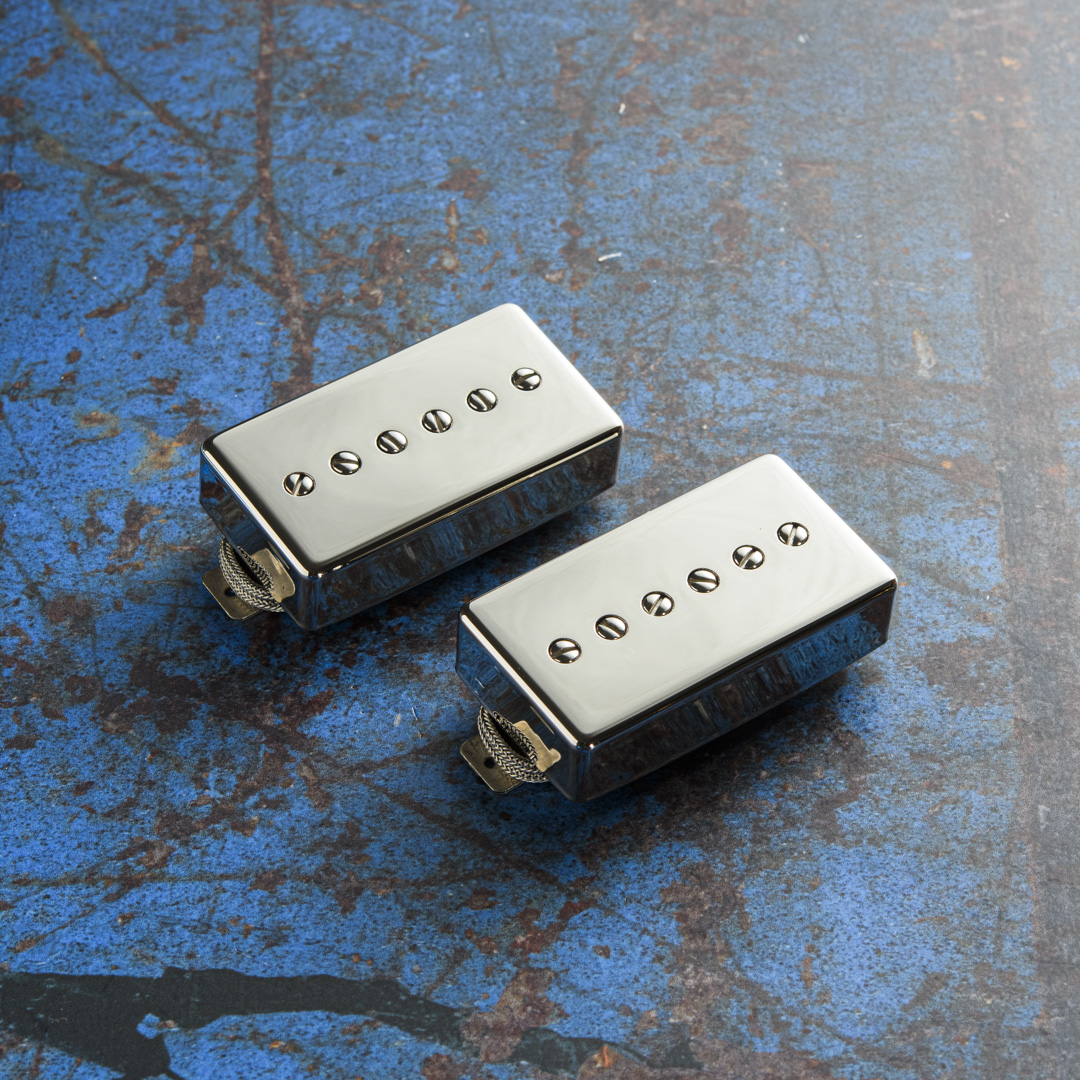

Brickhouse Toneworks Hum-Cancelling P90 Set – Humbucker Sized

Brickhouse Toneworks’ Humbucker-Sized Hum-Cancelling P90 Set delivers vintage-style P90 tone with zero hum, all in a format designed to drop into any humbucker-routed guitar. Built to match the output and response of 1950s P90s, this set captures the growl, clarity, and dynamic range players expect—without the noise.

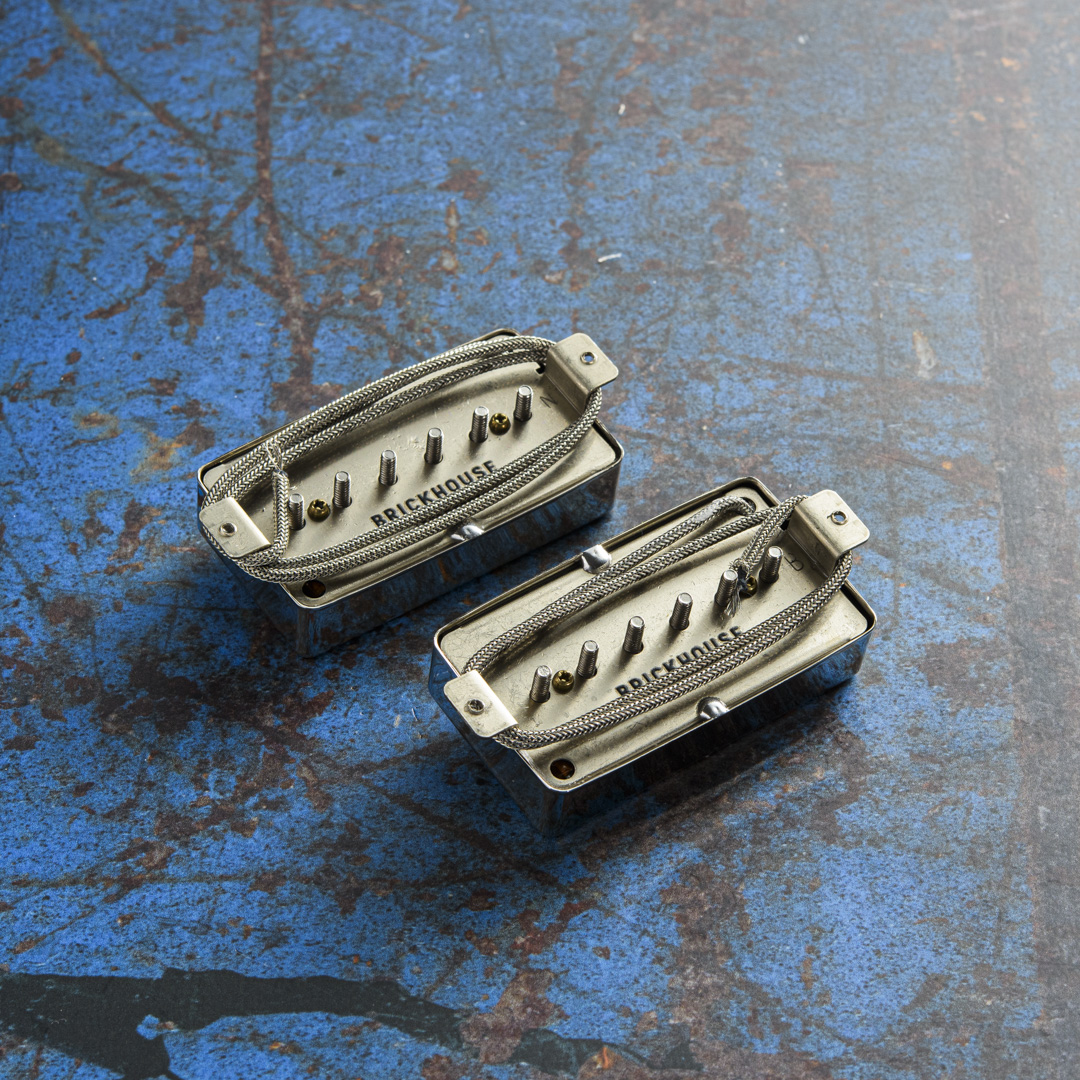

Features include cast Alnico 5 rod magnets, lightly potted coils for controlled microphonics, and vintage-style external braided lead wire. Each pickup is carefully matched for balance and tonal consistency, with the bridge measuring approximately 8k and the neck 7.5k. Recommended electronics include 500k pots and a .022uf cap.

Neck: 17.5k (Average) See Note Below
Bridge: 19.5k (Average) See Note Below

Note:
The DCR reading is much higher than normal single coil P-90's due to the nature of their hum-canceling design. This is a case where DCR should not be considered as a measurement of output because these are equivalent in output to a vintage P-90 that ranged in DCR readings between 7-9k.

Made in USA

Clear, bold, and noise-free—ideal for players who want authentic P90 tone in a humbucker footprint.
